Detectable Hygiene Shovels & Paddles are specifically developed for the food processing industry.
The detectable hygiene shovels and paddles are produced from a specially formulated material based on high impact food contact approved polypropylene.
Each product is virtually unbreakable, lightweight, easy to clean and store, has excellent wear resistance whilst reducing the risk of damage to floor surfaces and machinery.
One - Piece Shovels
Manufactured to the highest specification and standards expected by the food industry worldwide, the one piece shovel is a single piece of solid detectable polypropylene and is the ultimate in hygienic control.
Available with both standard or large blade.

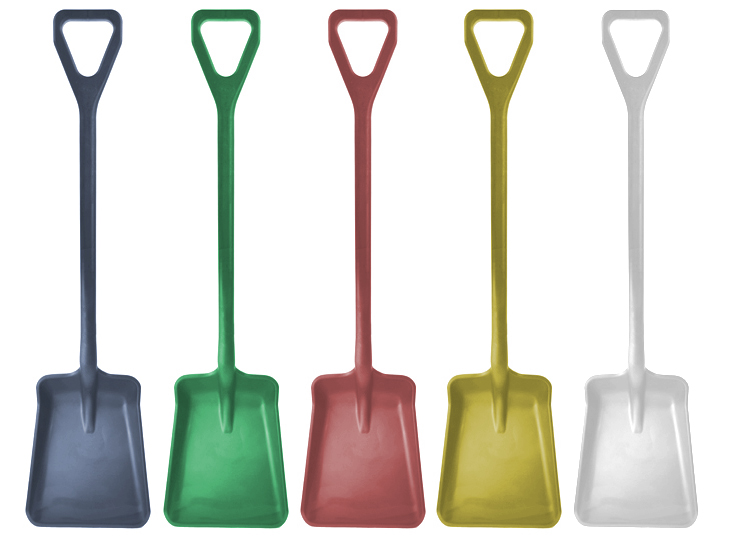

Standard One - Piece Shovel
Manufactured to the highest specification and standards expected by the food industry worldwide, the one piece shovel is a single piece of solid detectable polypropylene and is the ultimate in hygienic control.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-75 | Standard 1-piece shovel | PP | 279 x 362 x 1107 | 1790 | -30 + 80 | 5 |
      |
||||||

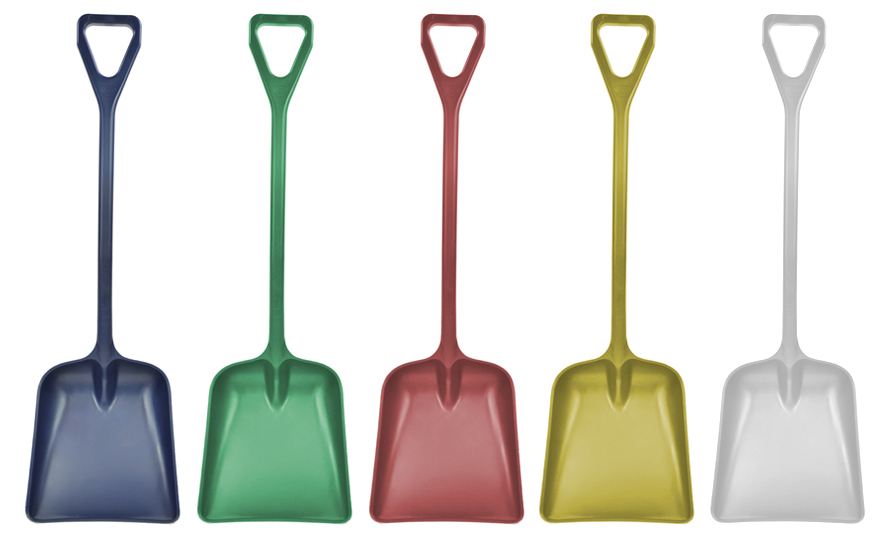

Large One - Piece Shovel
Manufactured to the highest specification and standards expected by the food industry worldwide, the one piece shovel is a single piece of solid detectable polypropylene and is the ultimate in hygienic control.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-70 | Large 1-piece shovel | PP | 347 x 410 x 1110 | 2091 | -30 + 80 | 5 |
|
||||||
Two - Piece Shovels
Specifically designed with hygiene as a priority, the two-piece shovel indicates a mode of construction only; all shovels are supplied fully assembled and permanently bonded and sealed to minimise germ traps.
All blades can be supplied with 'T', 'D', extended 'D' and super extended 'D' grip handles. Alternatively they can be fitted with an end cap to form a strong and effective hand shovel.
For more infomation on Two Piece Shovels please refer to the...
Data Sheets

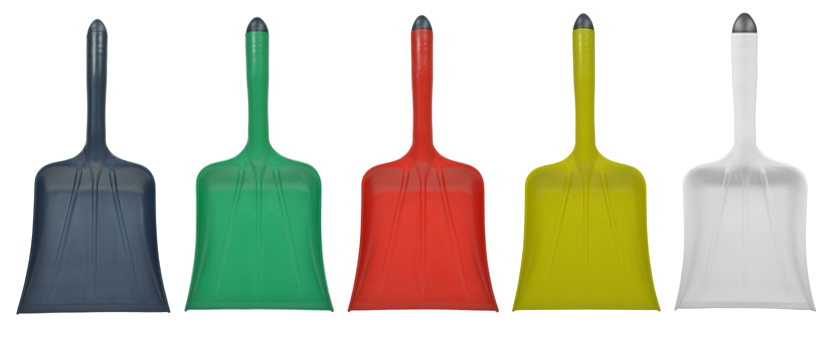

Small Hand Shovel
Small hand shovel with reinforced detectable flared blade. A must have versatile tool designed specifically for food and hygiene uses.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-01 | Small blade with end cap | PP | 242 x 264 x 478 | 510 | -30 + 80 | 5 |
|
||||||

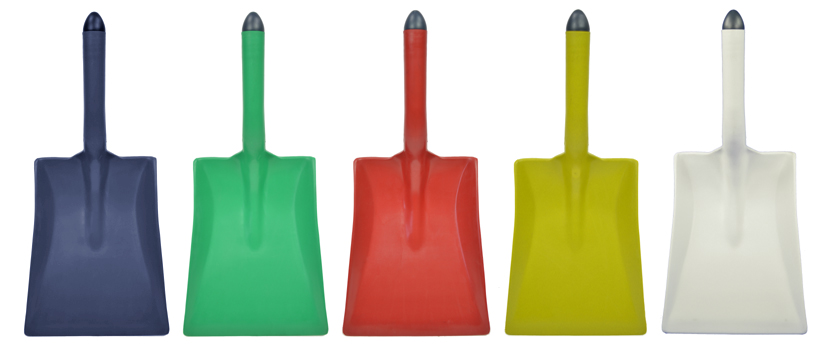

Standard Hand Shovel
Standard blade hand shovel.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-07 | Standard blade with end cap | PP | 247 x 315 x 527 | 590 | -30 + 80 | 5 |
 |
||||||

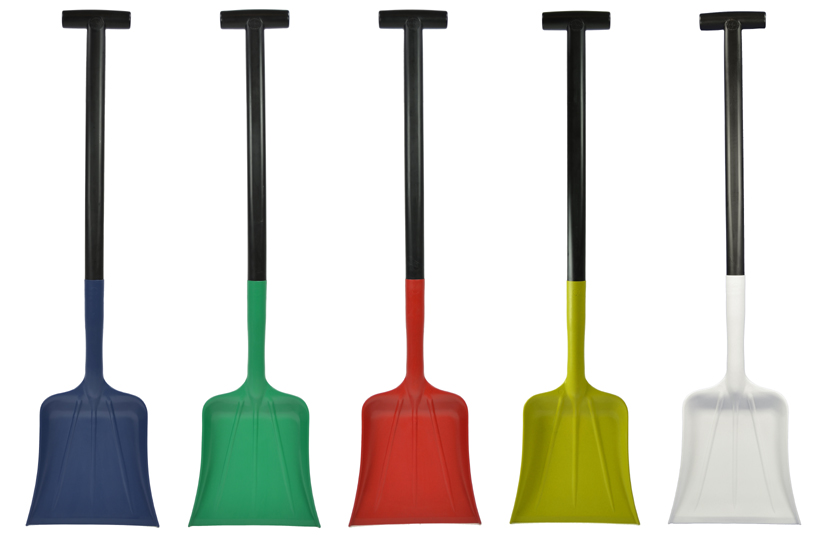

Small Blade Shovel
Small detectable flared blade and solid reinforced shaft. Solid reinforced shaft guarantees strength and durability making this shovel virtually unbreakable.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-02 | Small blade with T grip | PP | 242 x 264 x 917 | 1003 | -30 + 80 | 5 |
| HD-02D | Small blade with D grip | PP | 242 x 264 x 917 | 929 | -30 + 80 | 5 |
|
||||||

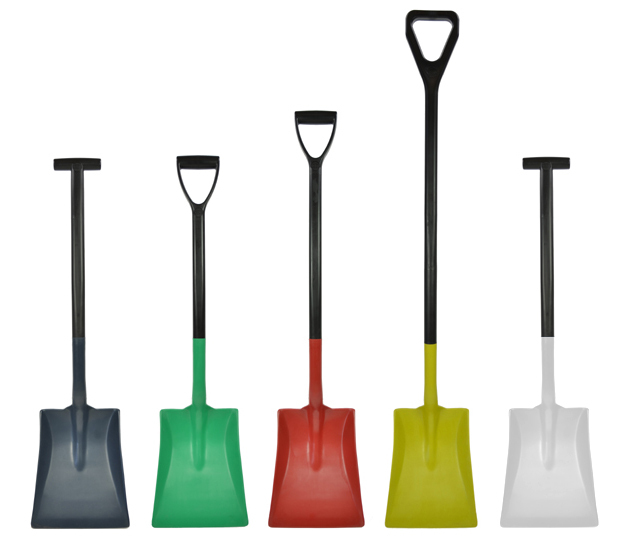

Standard Blade Shovel
The standard detectable blade and solid reinforced shaft ensure that this shovel is lightweight, durable and easy to clean. A great all round shovel. Extended and super extended shafts available for jobs requiring extra reach.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-03 | Standard blade T grip | PP | 247 x 315 x 966 | 1083 | -30 + 80 | 5 |
| HD-04 | Standard blade D grip | PP | 247 x 315 x 978 | 1071 | -30 + 80 | 5 |
| HD-05 | Standard blade ext D grip | PP | 247 x 315 x 1103 | 1175 | -30 + 80 | 5 |
| HD-05S | Standard blade super ext D grip | PP | 247 x 315 x 1360 | 1532 | -30 + 80 | 5 |
|
||||||

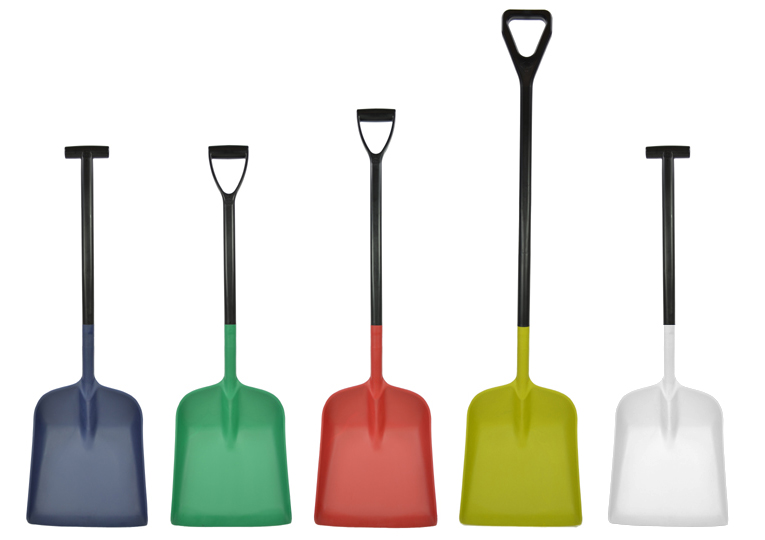

Large Blade Shovel
Large detectable blade shovel designed to handle bulky (but lightweight) foodstuffs and materials. With a bonded, solid reinforced shaft this shovel makes light work of the heaviest jobs. Extended and super extended shafts available for jobs requiring extra reach.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-08 | Large blade T grip | PP | 334 x 410 x 1022 | 1550 | -30 + 80 | 5 |
| HD-09 | Large blade D grip | PP | 334 x 410 x 1035 | 1553 | -30 + 80 | 5 |
| HD-10 | Large blade ext D grip | PP | 334 x 410 x 1159 | 1645 | -30 + 80 | 5 |
| HD-10S | Large blade super ext D grip | PP | 334 x 410 x 1410 | 2017 | -30 + 80 | 5 |
|
||||||

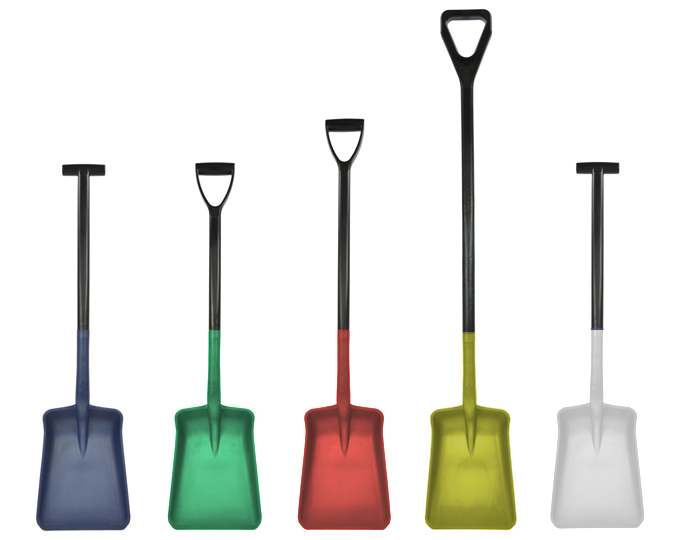

Deep Pan Shovel
Deep pan standard detectable blade provides extra depth and capacity without being unwieldy.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-23 | Deep Pan Standard blade T grip | PP | 257 x 350 x 1032 | 1407 | -30 + 80 | 5 |
| HD-24 | Deep Pan Standard blade D grip | PP | 257 x 350 x 1045 | 1395 | -30 + 80 | 5 |
| HD-25 | Deep Pan Standard blade ext D grip | PP | 257 x 350 x 1169 | 1500 | -30 + 80 | 5 |
| HD-25S | Deep Pan Standard blade super ext D grip | PP | 257 x 350 x 1420 | 1857 | -30 + 80 | 5 |
|
||||||
Paddles and Paddle Heads
Designed to accommodate a range of applications our paddles are effective in both liquid and solid materials. One piece paddles are available with or without holes in the paddle head.
Paddle head range is available with an end cap as a hand tool or with a stainless steel pole with hand grips.

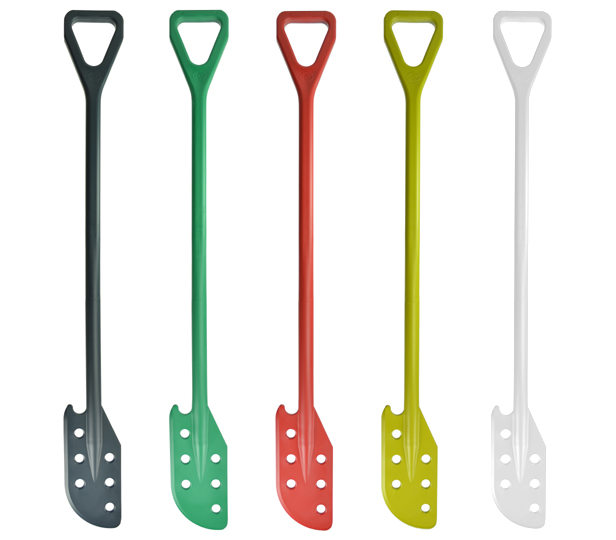

One - Piece Paddle with Holes
Single piece moulding in solid polypropylene suitable for temperatures -30 + 80.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-80 | One piece paddle with holes | PP | 125 x 290 x 1190 | 1442 | -30 + 80 | 5 |
|
||||||

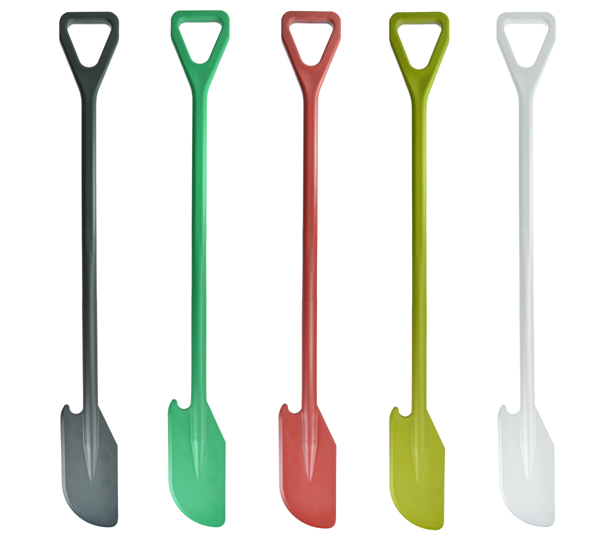

One - Piece Paddle with no Holes
Single piece moulding in solid polypropylene suitable for temperatures -30 + 80.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-81 | One piece paddle with no holes | PP | 125 x 290 x 1190 | 1471 | -30 + 80 | 5 |
|
||||||

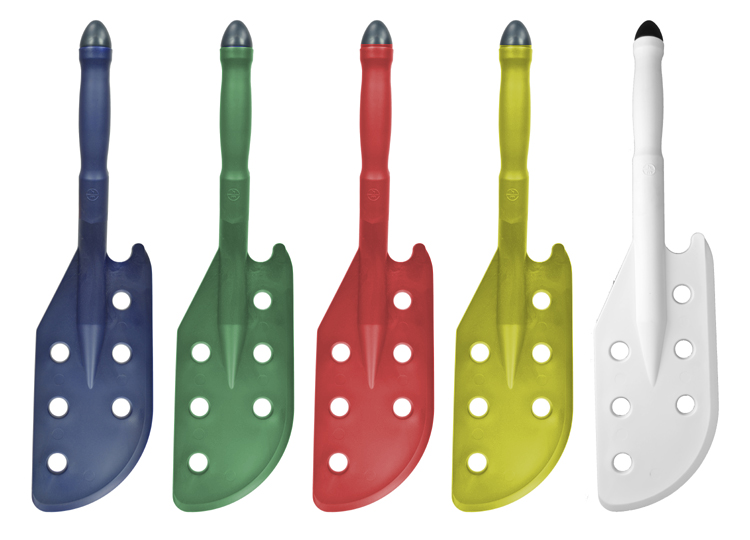

Hand Paddle
Single piece moulding in solid polypropylene. Paddle blade has a chamfered edge for scraping.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-101 | Paddle head with scraping edge and end cap | PP | 125 x 290 x 540 | 505 | -30 + 80 | 5 |
|
||||||

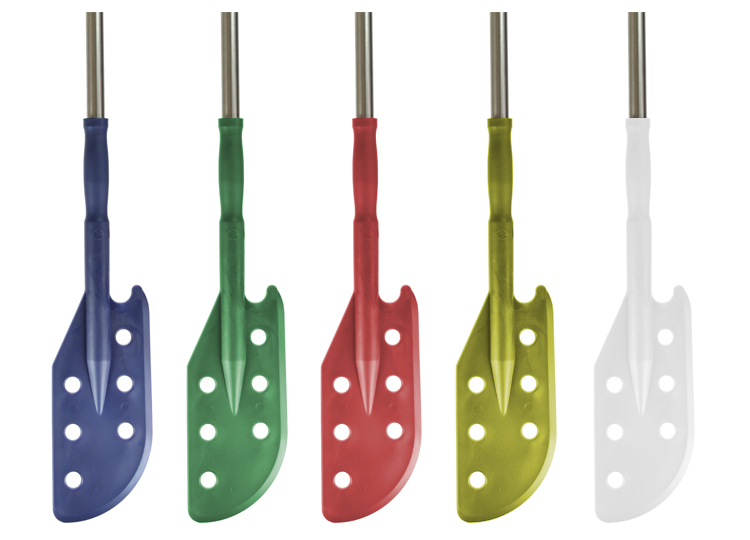

Paddle Head Stainless Steel Pole
Polypropylene paddle head with chamfered edge mounted onto a polished stainless steel shaft with polypropylene handgrips. Available with 1 or 2 hand grips.
| Code | Description | Material | Size (mm) W x D x L | Weight (G) | Temp Range °C | Pack Qty |
|---|---|---|---|---|---|---|
| HD-105 | Paddle head with scraping edge SS pole and 2 PP grips | PP & SS | 125 x 290 x 1760 | 1085 | -30 + 80 | 5 |
| HD-106 | Paddle head with SS pole and 1 PP grip | PP & SS | 125 x 290 x 1760 | 1085 | -30 + 80 | 5 |
|
||||||
PP = Polypropylene
SS = Stainless Steel
For more information on any of our products from the detectable hygiene range, please make your enquiries through our Enquiry Form or call us on +44 (0) 114 270 0513
